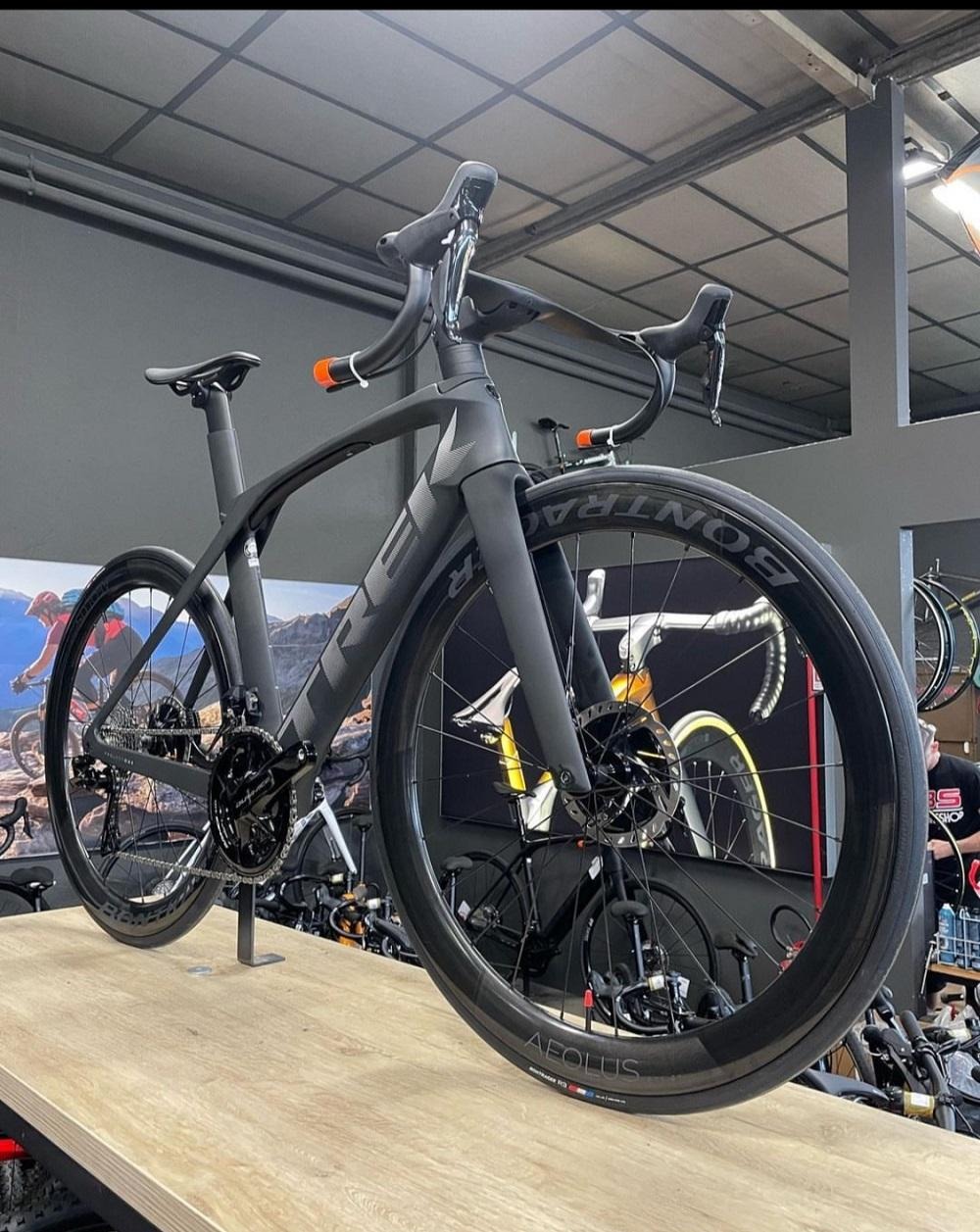

Original New 2023 TREK MADONE SLR 9 Gen Ready To Ship

الوصف

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit
H1.5 Race

Weight
Weight
54 - 7.10 kg / 15.66 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
Shimano BT-DN300

Drivetrain
Shifter
Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank
Size: 47
Shimano Dura-Ace R9200, 52/36, 165mm length
Size: 50, 52
Shimano Dura-Ace R9200, 52/36, 170mm length
Size: 54, 56, 58
Shimano Dura-Ace R9200, 52/36, 172.5mm length
Size: 60, 62
Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Dura-Ace R9200, 11-30, 12 speed
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size
1x: 50T, 2x: 54/40

Wheels
Wheel front
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front
Bontrager Switch thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Tire
Bontrager R4 320, 700x25mm
Max tire size
32mm (as measured, see manual for details)

Components
*Saddle
Size: 47, 50, 52
Aeolus RSL, carbon rails, 155mm width
Size: 54, 56, 58, 60, 62
Aeolus RSL, carbon rails, 145mm width
*Seatpost
Size: 47, 50, 52, 54
Madone aero carbon seatpost, 0mm offset, short length
Size: 56, 58, 60, 62
Madone aero carbon seatpost, 0mm offset, long length
*Handlebar/stem (integrated)
Size: 47
Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Size: 50, 52
Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
Size: 54
Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: 56, 58
Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Size: 60, 62
Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
Handlebar tape
Bontrager Supertack Perf tape
Brake
Shimano Dura-Ace hydraulic disc, flat mount
*Brake rotor
Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano MT900, centerlock, 160mm
Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano CL900, centerlock, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear
